Bicycle Conversion Kit lite 24v 250w [Refurbished]

₹3,950.00 ₹6,200.00

Sold By: AggarwalEVehicles

Technical Details

Color                Black

Item part number           250NF

Manufacturer’s Minimum Suggested Age(months)            10.00

Quantity

SKU:

Categories: Automotive

Motor Specifications:
Rated Voltage: 24 Volt DC
Rated Power: 250W
Ambient temperature: -20°C — 45°C
Turn potential: 5V
Brake potential: Low potential brake
RPM (after Reduction) – 300rpm
Rated Current – 10.41A
Full load current – 14.2A
Under voltage protection: 20.5V
Current Limiting protection: 20A
Torque Constant – 9 Nm (90 kg-cm)
Torque stall – 40 Nm (400 kg-cm)
Sprocket: 9Tooth only fits #410 bicycle chains





Controller Specifications:
Voltage: DC 24V
Under Pressure: 20V±1
Current Limit: 21A ±1
Level Brake: low level
Turn Voltage: 1.1-4.3V
Phase Angle: 60/120
Power: 250W
Includes attachments for motor, accelerator, brake, battery, battery charging, brake light, power lock.

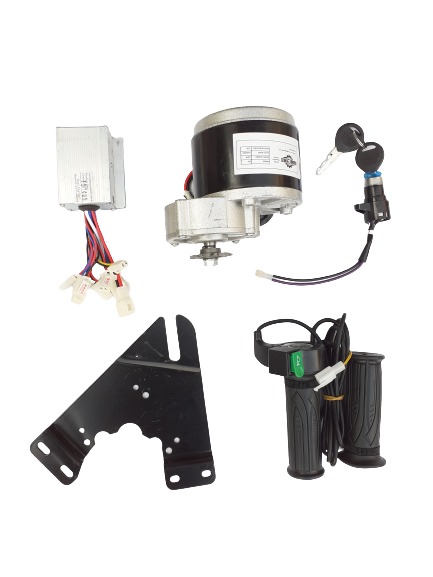

Package Includes refurbished items:

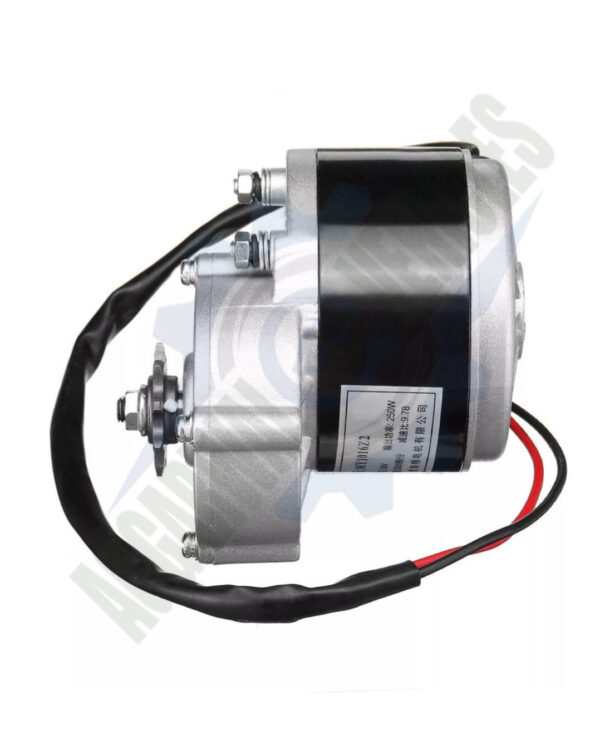

1 x E-bike 24V 250W DC Geared Motor
1 x E-bike Motor Controller 24V 250W
1 x Throttle Set
1 x Mounting Plate
1 x Key Switch



Note:
This kit does not include battery.
This 24v 250w motor is best suited for single loading.
Maximum speed of motor is 22km/hr.
Use minimum 24v 12ah batteries for actual performance.
This cycle kit might have some scratches and dent although it will work properly.
